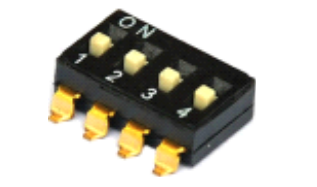

拨码开关

运用具有良耐热性和抗化学功能的工程塑料。
规范的镀金接点保证可靠性和长寿命性。
开关通断时可主动清洁触点。
广泛运用于数据处理、通讯、遥控和防盗主动警铃系统等需求手动程式编制的产品上。

系列	动作力	额定电流	接触电阻	绝缘电阻	耐电压	机械寿命	电气寿命	资料下载
SMQS	≥1000gf	Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC	≤50mΩ	≥100MΩ at 500VDC	500VDC/1 minute	5000	3000	-
SMQP	≥1000gf	Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC	≤50mΩ	≥100MΩ at 500VDC	500VDC/1 minute	5000	3000	-
SMQA	≥1000gf	Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC	≤50mΩ	≥100MΩ at 500VDC	500VDC/1 minute	5000	3000	-
SMWE	≥1000gf	Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC	≤50mΩ	≥100MΩ	500VDC/1 minute	2000	2000	-
SMXS	≥1000gf	Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC	≤50mΩ	≥100MΩ at 100VDC	300VDC/1 minute	3000	1000	-
SMXH	≥1000gf	Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC	≤50mΩ	≥100MΩ at 100VDC	300VDC/1 minute	3000	1000	-
SMXP	≥1000gf	Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC	≤50mΩ	≥100MΩ at 100VDC	300VDC/1 minute	3000	1000	-
SMXMS	≥1000gf	Switching:25mA at 24VDC / Non-Switching:100mA at 50VDC	≤50mΩ	≥100MΩ at 100VDC	300VDC/1 minute	3000	1000	-
BSD	≥800gf	0.5A, 12V DC	≤50mΩ	/	/	3000	1000	-

详细资料请致电或直接联系我们
